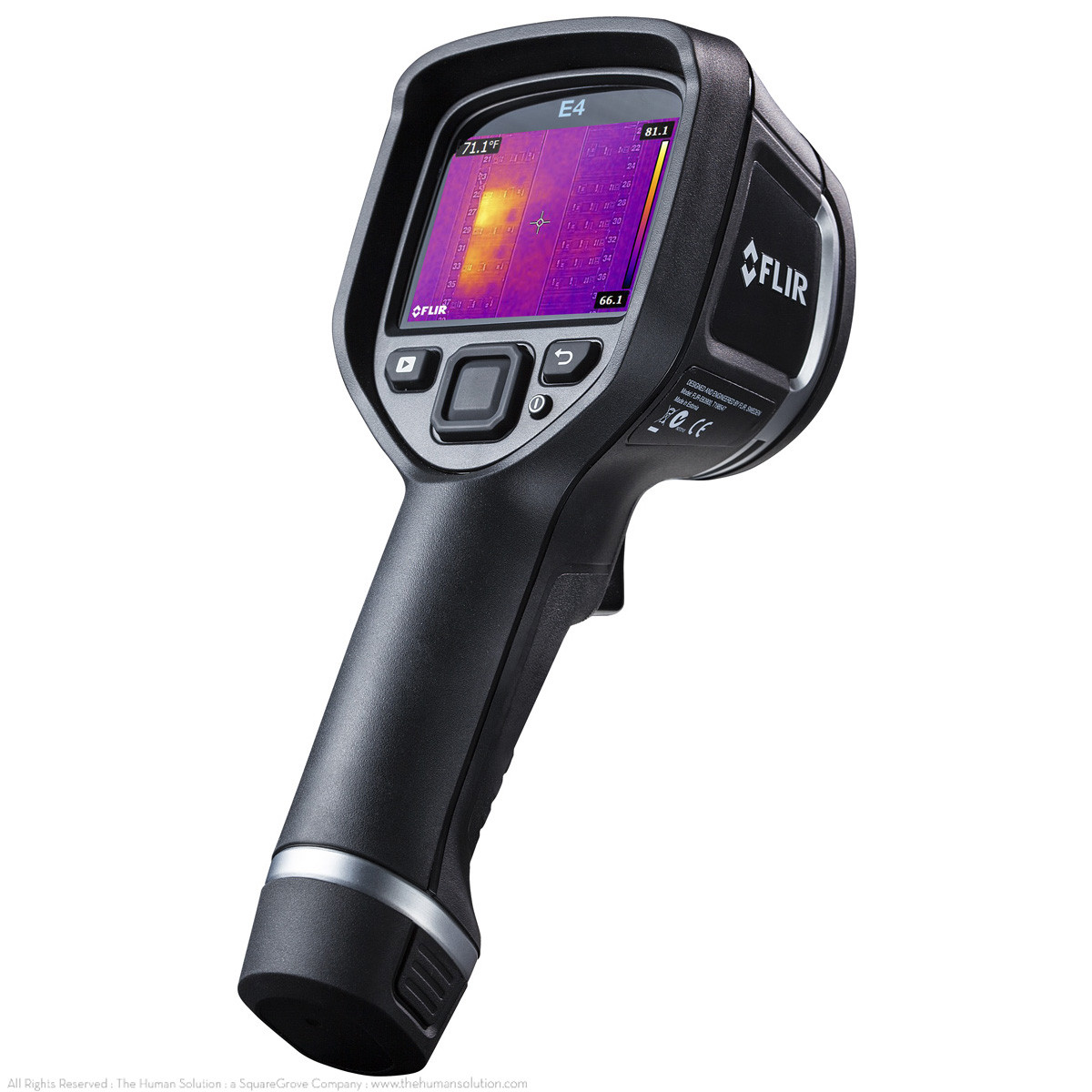

FLIR Ex-Series Infrared Cameras provide compact, lightweight thermal imaging with FLIR's exclusive Multi-Spectral Dynamic Imaging (MSX) to present a crisp, clear thermal image in real time. A thermal image with a temperature range of -4° F to 482° F (-20° C - 250° C) with a 2% margin of error is shown in exceptional detail on the built-in 3'' color LCD display, allowing for rapid hotspot identification in the field. FLIR Ex-Series Infrared Cameras also include focus-free lenses, a rechargeable battery and hard transport cases, making it an versatile, easy-to-use addition to any inspector's inventory.Read More...
|Choose Options Below||click on for more info|
Four models of FLIR Ex-Series Infrared Cameras are available. Use the table below to determine the best camera for your needs.
|IR Resolution||80 x 60 px||120 x 90 px||160 x 120 px||320 x 240 px|
|MSX Resolution||320 x 240 px||320 x 240 px||320 x 240 px||320 x 240 px|
|Thermal sensitivity||< 0.15° C||< 0.1° C||< 0.06° C||< 0.06° C|
|Accuracy||± 2% or 2° C||± 2% or 2° C||± 2% or 2° C||± 2% or 2° C|
|Temperature Range||-20° C to 250° C (-4° F to 482° F)||-20° C to 250° C (-4° F to 482° F)||-20° C to 250° C (-4° F to 482° F)||-20° C to 250° C (-4° F to 482° F)|
|Field of View||45° x 34°||45° x 34°||45° x 34°||45° x 34°|
|Detector||Uncooled microbolometer||Uncooled microbolometer||Uncooled microbolometer||Uncooled microbolometer|
|Screen size||3'' color LCD||3'' color LCD||3'' color LCD||3'' color LCD|
|Frame Rate||9 Hz||9 Hz||9 Hz||9 Hz|
|Emissivity Correction||0.1 to 1.0 (adjustable)||0.1 to 1.0 (adjustable)||0.1 to 1.0 (adjustable)||0.1 to 1.0 (adjustable)|
|Thermal Palettes||Iron, rainbow, gray||Iron, rainbow, gray||Iron, rainbow, gray||Iron, rainbow, gray|
|Measurement Modes||Spot (center)||Spot (center), area box (min/max)||Spot (center), area (min/max), isotherm (above/below)||Spot (center), area (min/max), isotherm (above/below)|
|File Storage Type||Radiometric JPG||Radiometric JPG||Radiometric JPG||Radiometric JPG|
|Drop-proofing||2 m (6.6 ft)||2 m (6.6 ft)||2 m (6.6 ft)||2 m (6.6 ft)|
|Shock-proofing||25 g, IEC 60068-2-29||25 g, IEC 60068-2-29||25 g, IEC 60068-2-29||25 g, IEC 60068-2-29|
FLIR Ex-Series Cameras ship with a single rechargeable Li-Ion battery. A backup battery can be included as well to facilitate quick battery changes in the field.
Ex-Series cameras include an AC adapter to recharge the Li-Ion battery without removing it from the camera. The external battery charger will allow you to charge batteries independent of the camera, making it ideal for users with multiple batteries.
A car charger can be included with your FLIR Ex-Series Infrared Camera for convenient battery charging while on the go.
For technicians in need of convenient transport for their FLIR Ex-Series Infrared Camera, a custom pouch and carry strap is also available.
FLIR's IRW Series IR inspection windows help to prevent dangerous arc flash incidents by adding a calcium fluoride crystal lens with a hinged cover that can be installed on electrical cabinet doors. This allows for visual inspections of live components via FLIR IR cameras with minimal exposure. Three models of IRW infrared windows can be ordered with an Ex-Series Infrared Camera to improve safety during thermal inspections. Please see this document for more details.
NIST calibration certificates can be added to your FLIR Ex-Series Camera if necessary. Please allow an additional five business days for processing.
With FLIR's exclusive Multi-Spectral Dynamic Imaging technology, FLIR Ex-Series Infrared Cameras provide an extraordinarily sharp thermal image in a compact, lightweight package. Accurate to within ±2%, a FLIR Ex-Series Infrared Camera creates comprehensive thermal testing results on a single radiometric JPG unlike traditional "spot" IR thermometers. The lightweight design offers intuitive single-handed operation, with real-time thermal images shown in extreme detail on a full color 3'' LCD screen. When not in use, the camera can be stored in an optional carry pouch or a hard transport case for protection.
|Accuracy||±2% or 2° C|
|Temperature range||-20° C to 250° C(-4° F to 482° F)|
|LCD screen size||3''|
|Output||Mini USB cable|
|Battery life||4 hours|
|Warranty*||Detector: 10 years Battery: 5 years Parts & labor: 2 years|
* Extended warranty coverage is available. Contact us for options and pricing.
Thanks to the Multi-Spectral Dynamic Imaging (MSX) technology built into FLIR Ex-Series Infrared Cameras, identifying hotspots and potential issues during building inspections has never been easier. The crisp image displayed on the integral color LCD display offers finer detail than ever before, letting you see text on labels, clearly defined object edges, and much more. Weighing in at only 1.2 lbs and packing a swappable Li-ion battery boasting 4 hours of run time, FLIR Ex-Series Infrared Cameras are perfect for the inspector looking for a thermal camera that's lightweight, durable and accurate.
