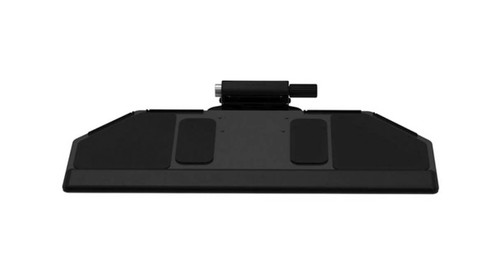

Humanscale 550 Big Compact Keyboard Tray - Design your own

SKU:
HUS919 |

| Click Here to Learn How to Use This Desk Builder

Choose Your Video

  • Humanscale Keyboard Tray Systems Review08:01

Selected But Not Shown

      Save big on Humanscale at Human Solution!


      When your workspace calls for a keyboard tray with all of your accessories on one handy surface, design the perfect one for you with the Humanscale 550 Big Compact Keyboard Tray.

      Humanscale keyboard trays are designed to ensure that users are able to work consistently within their Neutral Reach Zone, reducing negative health effects from straining or overreaching.

      Keep your keyboard, mouse, and everything you need at your fingertips with one desk accessory. Tilt and type in the negative for even more comfort at the keys than you ever thought was possible.

      The Humanscale 550 Big Compact Keyboard Tray is now available with a Design Your Own option, so you choose the right keyboard tray components that elevate your work style in the direction of better ergonomics.

      Features

      • Easily configured to meet your specific needs
      • Made of phenolic resin - an ultra-strong, remarkably thin (1/4") composite that's nontoxic, durable, and easy to clean
      • Design supports a variety of keyboards and mice combos and will fit most desks
      • Lack of mouse platforms means you don’t reach outside of your Neutral Reach Zone
      • Made in the USA

      Specifications

      Mechanisms 8 adjustable arms available
      Track lengths 11" - 27" for varying desk depths
      Palm rests Available in foam or gel
      Platform dimensions 25" W x 10.625" D
      Warranty 15 years


      Color

      The Humanscale 550 Big Compact Keyboard Tray is available in black, white, or platinum. Both the keyboard mechanism and platform will come in the chosen color.



      Humanscale Keyboard Mechanisms

      Building a Humanscale keyboard system starts with finding the right mechanism for your setup. The mechanism determines the height adjustment and negative tilt for your keyboard tray.

      6G mechanism

      Humanscale's newest dial-a-tilt mechanism that instantly adjusts the platform's tilt without the need to lock or loosen any knobs or levers and slimmer than the 5G.

      Height adjustment 7": 1.75" above track to 5.25" below track
      Track length Comes standard with 22" track

      5G mechanism

      The dial-a-tilt mechanism instantly adjusts the platform's tilt without the need to lock or loosen any knobs or levers. Its solid build quality and simplicity make this mechanism the most popular mechanism Humanscale offers.

      Height adjustment 6.25": 1.25" above track to 5" below track
      Track length Comes standard with 22" track

      5GSM mechanism for limited-depth desks

      This mechanism goes 4" farther underneath a desk surface, getting a keyboard tray stored out of the way on a shorter track, perfect for desks with limited depth or small spaces.

      Height adjustment 4": 0.5" above track to 3.5" below track
      Track length Comes standard with 18" track

      5GAD mechanism for above-desk use

      This mechanism's greater-than-average adjustment range is ideal for sit-to-stand workstations, featuring steel construction for stable keying and mousing.

      Height adjustment 13.5": 7.5" above track to 6" below track
      Track length Comes standard with 27" track

      4G mechanism

      This is the older version of the 5G mechanism, featuring dial-a-tilt keyboard angle adjustablity.

      Height adjustment 6.25": 1.25" above track to 5" below track
      Track length Comes standard with 22" track

      4GAD mechanism for above-desk use

      This is a version of the 4G with a longer arm for use above a work surface, making it great for sit-to-stand soulutions.

      Height adjustment 11.5": 8.5" above track to 3" below track
      Track length Comes standard with 27" track

      2G mechanism

      Loosen knob to adjust and lock back into place. Unlike the 5G or 6G, this mechanism has no reference for keyboard platform angle.

      Height adjustment 6.25": 1.25" above track to 5" below track
      Track length Comes standard with 22" track

      KM mechanism

      This mechanism features a pre-set 0 degree tilt and knob-free adjustment.

      Height adjustment 6.25": 1.25" above track to 5" below track
      Track length Comes standard with 22" track


      Lateral Slider

      All Humanscale mechanisms pivot 360 degrees from the point where it is mounted to the track. Some users have a need for additional side-to-side adjustability. The lateral slider provides for eight extra inches of movement from right to left. This is a useful feature for someone at a large workstation that requires them to type facing different angles or monitors.



      Mouse Platform

      A separate mouse platform is not available with the Humanscale 550 Big Compact Keyboard Tray as this keyboard tray is large enough to support mousing on the main platform.

      Palm Support

      For the Humanscale 550 Big Compact Keyboard Tray, you can select a solid 25" palm rest or a split palm rest with one 20" section and one 5" long section; this feature comes in handy if a user doesn't want a palm rest in front of their mouse or keypad (pictured in main image above). All are covered with an easy to clean, black synthetic leather.


      For users with "slim" keyboards such as those made by Apple, a 19'' "slim" gel palm rest is available. Please note that this palm rest will not reach across the entire length of the tray, and will not fit flush against the keyboard tray corners like the 20'', and 25"' palm rests. The slim 19'' palm rests will sit roughly 5/8'' away from the closest corner when installed.



      Humanscale Palm Rests

      When designing your Humanscale 550 Big Compact Keyboard Tray, if you choose to not add a palm support, there will be holes located at the installation points on the tray.


      This is normal and part of the keyboard tray's design, but if you do not want a palm rest and installation holes in your tray, we suggest ordering another keyboard tray.


      If you have any questions or need help choosing a keyboard tray, please don't hesitate to call us!



      Track Length

      The track mounts to the underside of your work surface. It directs and supports the Humanscale mechanism and keyboard tray as it slides forward and back. Standard length on most mechanisms is 21 5/8 inches. That length ensures that the keyboard tray can be completely stowed under your desk when not in use. Some mechanisms come standard with a shorter or longer track. Consult each description for that information, but all systems can be ordered with any track length.



      Mouse Pad

      A mouse pad for the separate mouse platform is not available with the Humanscale 550 Big Compact Keyboard Tray as this keyboard tray is large enough to support mousing on the main platform.



      Second Mouse Pad

      A mouse pad for the separate mouse platform is not available with the Humanscale 550 Big Compact Keyboard Tray as this keyboard tray is large enough to support mousing on the main platform.



      Promotional Item

      FREE Goldtouch Adjustable Keyboard GTN-0033

      This keyboard's split design promotes a more natural and ergonomic typing position.

      Goldtouch Adjustable Keyboard GTN-0033

      FREE UPLIFT CPU Holder

      Clear up desktop space and keep your computer tower off the floor by mounting it to the underneath of your desktop. This accessory is great for height-adjustable desk users.

      UPLIFT CPU Holder

      FREE UPLIFT Single Monitor Arm

      Mount a monitor weighing between 4.5 lbs - 17.5 lbs, and adjust the height, depth or lateral position with easy fingertip adjustment.

      UPLIFT Single Monitor Arm

      Product Reviews

      Write Review

      1. It gets the job done, but a few complaints. 3 Star Review

        Posted by on Jun 23rd 2017

        This keyboard tray is a great size, fits both my keyboard, my rollerbar mouse and my regular mouse. The tray is very thin, 1/2 a centimeter thick. I wish it had a locking feature to lock it at a specific height because when I hit it with my knee, it moves up and I have to readjust it again. It is very slow moving in and out from under my desk, have to push pretty hard to get in under the desk all the way.

      Warranty Information

      This product comes standard with a 15-year warranty.
