UPLIFT 4-Leg Conversion Kit

The 4-Leg Conversion Kit comes complete with all the parts needed to adapt your existing UPLIFT 900 series desk into the UPLIFT 900 4-Leg Height-Adjustable Desk Base

When desk needs change and you find yourself needing a larger desktop, you have options. With the UPLIFT 4-Leg Conversion Kit, you can have a sturdy 4-leg desk frame to take your work to the next level quickly.

UPLIFT desks with four legs are capable of lifting up to a hefty 530 pounds, all with the push of a button. Build the right desk for you with one supportive workspace addition.

Your desk will have new life and an improved lifting capacity with the introduction of the 4-Leg Conversion Kit. Give your growing desk the extra support it needs, starting from the bottom.

Features

  • Includes all the parts needed to adapt your existing UPLIFT desk into the UPLIFT 4-Leg Height-Adjustable Desk Base
  • Each leg is freestanding and uses smaller brackets for custom positioning on any shape desktop
  • Several models available if your base is a 2-leg or 3-leg

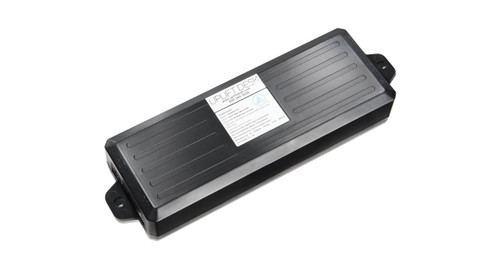

  • Dual control box design includes haul sensors for straightening feet and ensuring fast height adjustments
  • 25.5" height range using standard up/down keypad or optional upgrade to the advanced digital memory keypad
  • Eliminates the need to buy a new base when your desk needs change
  • Assembled in Austin, Texas, and parts are sourced both globally and within the USA

Specifications

Height range 23.5" - 49"
Desktop attachment Accepts wide range of desktop sizes*
Travel speed 1.5"/second (varies - slowest with maximum load) with soft start/stop actuator motors
Noise level 45 decibels during motion
Weight capacity 530 lbs (Weight capacity assumes that weight is distributed evenly between the desk legs)
Keypad Advanced digital keypad with 4 memory positons is available;
2-button up/down keypad comes standard
Adjustable foot leveling studs 3/8" adjustment for uneven flooring
Voltage Input: 120 V
Output: 24 V
Transformer power 200 W (0.2 W on standby)
Power supply current 5 amps
BIFMA/ANSI X5.5-2008 Certified Yes - completely meets all requirements of BIFMA/ANSI X5.5-2008 Test Sections 4.3, 4.5, 5.2-5.5, 6.0, 7.0, 8.0 & 15.0
Safety certifications Lifting Column - TUV (Canada and U.S.)
Control Box - TUV (Canada and U.S.)
Power Cord - UL/CSA (Canada and U.S.)
Warranty 7-year all-inclusive warranty on the entire desk base, which includes the motor, frame, controller, switch, electronics and mechanisms. Optional extended warranty available when selecting desk options
Shipping dimensions 3 leg conversion - 41'' W x 10'' H x 12'' D, 63 lbs
2 leg conversion - 41'' W x 10'' H x 12'' D, 60 lbs


Model

Choose whether you are converting a two-leg UPLIFT or a three-leg UPLIFT into the four-leg model



Frame Color

The UPLIFT base is available with four different base color options -- black, gray, metallic (industrial style), and white.



Keypad Options

Your original UPLIFT keypad will work with this conversion kit, but if you would like to upgrade or choose a different keypad, select the Push and Hold Two Button Up/Down Keypad or the Advanced Digital Memory Keypad with 4 Memory Positions and Digital Height Display for a quick, easy adjustment to your saved positions.


Please note: One-touch functionality is not available with the advanced keypad on four-leg desks. Memory adjustment will still require you to Press-and-Hold the memory button until your desk reaches the programmed height.


For more keypad details & photos, download PDF

UPLIFT Keypad


Expedited Production

Receive your accessories even sooner! Just add our expedited production option to your order.


Place your order by 3 pm Central on a business day and we guarantee to start production and ship your order the same day. If placed after 3 pm, your order is guaranteed to ship the following business day.


Note: Expedited production is different from expedited shipping. If you're interested in adding expedited shipping to your order, please contact us directly.
